BLPS-35 Versatile High-Stability Open-Gap Deep-Throat Power Press Wholesale

Home / Products / Open-Type Power Press / Open-Gap Deep-Throat Power Press / BLPS-35 Versatile High-Stability Open-Gap Deep-Throat Power Press

BLPS-35 Versatile High-Stability Open-Gap Deep-Throat Power Press

BLPS-35 Versatile High-Stability Open-Gap Deep-Throat Power Press delivers an increased nominal force of 350 kN. It is characterized by uniform load distribution and a vibration-damping structure, which helps maintain high accuracy even at a maximum operating speed of 180 strokes per minute. The model is equipped with a 780 × 340 mm worktable and an extended die height of up to 250 mm, enabling compatibility with a wider range of specialized molds. Driven by a 3 kW main motor and featuring a 500–1200 mm deep throat design, it is well-suited for complex forming operations that require greater clearance from the frame center for improved material handling and positioning. It is suitable for precision metal forming applications requiring high stability, large working clearance, and consistent high-speed performance.

Contact Us Contact Us

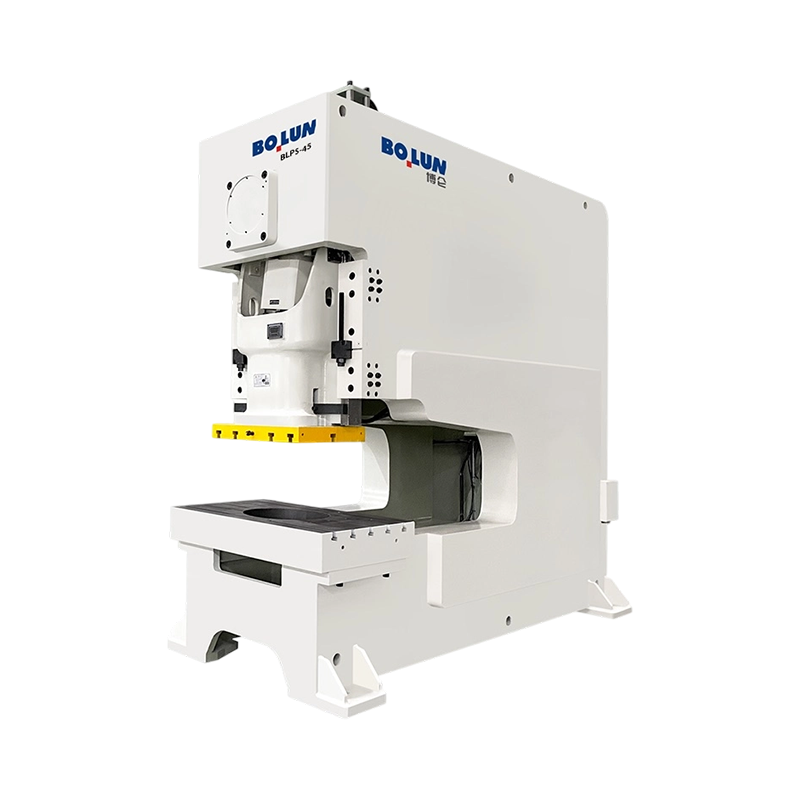

PREV：BLPS-25 Compact Precision Open-Gap Deep-Throat Power Press NEXT：BLPS-45 Robust Large-Capacity Open-Gap Deep-Throat Power Press
  • Description
  • Contact Us
Basic data BLPS-25 BLPS-35 BLPS-45 BLPS-60 BLPS-80 BLPS-125 BLPS-160 BLPS-200 BLPS-260 BLPS-315 BLPS-400
Model V H V H V H V H V H V H V H V H V H V H V H
Nominal Capacity (kN) 250 350 450 600 800 1250 1600 2000 2600 3150 4000
Nominal Pressure Stroke (mm) 3.2 2.3 3.2 2.3 3.2 2.3 4 2.3 5 3.2 5 3.2 6 4 6 4 8 4 8 6 8 6
Strokes per Minute (S.P.M) 70-110 95-180 50-95 110-180 60-120 80-175 40-85 80-165 40-75 80-120 30-65 60-130 20-50 35-70 25-50 45-95 20-40 35-75 20-40 30-45 20-35 35-65
Strokes of Slide (mm) 80 30 90 40 110 50 130 50 150 60 180 70 200 80 200 100 250 100 250 100 250 100
Max.Die Height (mm) 230 215 235 250 270 300 300 325 330 375 350 405 400 460 450 500 450 525 450 525 450 525
Die Height Adjustment (mm) 50 50 60 70 80 90 100 110 120 120 120
Throat depth (mm) 500-1200 500-1200 500-1200 500-1200 500-1600
Worktable Size (mm) 720x320x70 780x340x70 850x440x90 900x520x90 1000x600x100 1150x680x120 1250x760x150 1400x820x160 1650x880x180 1650x880x180 1860x990x220
Slide Bottom Size (mm) 350x300x50 380x320x50 430x350x60 500x400x70 560x460x70 650x520x80 720x580x90 850x650x90 920x700x100 1000x720x100 1050x760x100
Height of working face (mm) 800 800 800 800 830 845 915 1020 1120 1120 1120
Distance between Column (mm) 478 505 520 534 600 620 750 865 950 1050 1190
Dia.Of Shank Hole (mm) Ø 40 Ø 40 Ø 40 Ø 50 Ø 50 Ø 50 Ø 65 Ø 65 Ø 65 Ø 65 Ø 70
Main motor (kW*P) (vH) 2.2*4 (vH) 3*4 (vH) 4*4 (vH) 5.5*4 (vH) 7.5*4 (vH) 11*4 (vH) 15*4 (vH) 18.5*4 (vH) 22*4 (vH) 30*4 (vH) 37*4
Die height adjuster (kW) Manual Operation 0.2 0.5 0.75 1.1 1.5 1.5 2.2
Air Pressure (MPa) 0.55
Punch accuracy GB(JIS)1 class
