BLPC-160 Versatile Precision-Stable Open-Type Double-Point Power Press

BLPC-160 Versatile Precision-Stable Open-Type Double-Point Power Press offers a 1600 kN nominal capacity and an expanded 2000 mm worktable to accommodate larger or multi-stage progressive dies. This model excels in maintaining accuracy under off-center loads thanks to its robust balance device and the inherent stability of the double-point architecture. The BLPC-160 Versatile Precision-Stable Open-Type Double-Point Power Press is equipped with an electric die height indicator and an electronic rotary cam switch with six spare channels, allowing for seamless integration with various automated peripheral equipment. Its rigid, heat-treated steel frame significantly reduces vibration, ensuring the longevity of both the machine and the expensive molds it carries.

Contact Us Contact Us

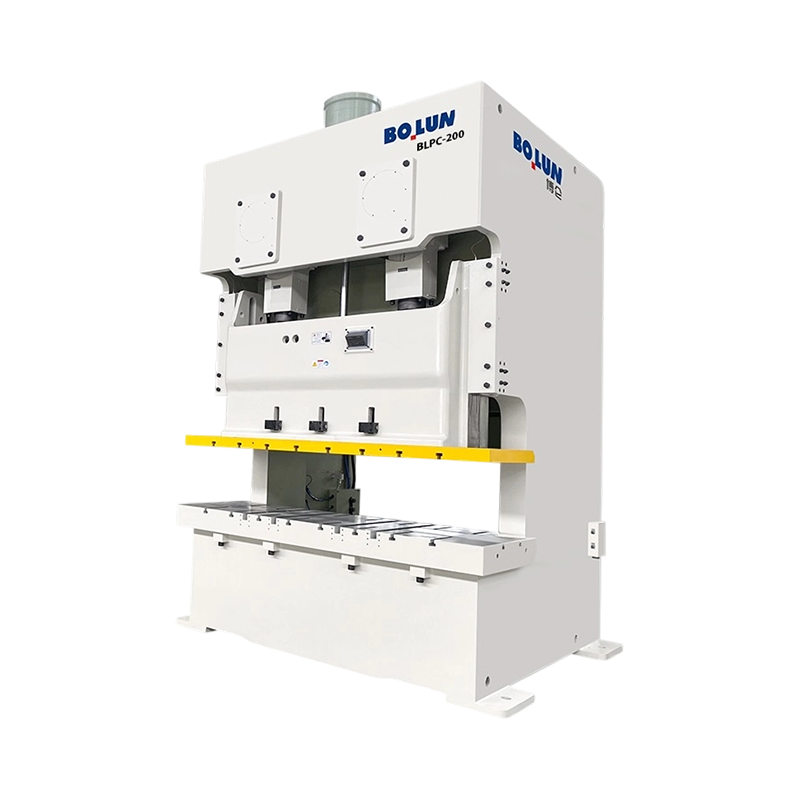

PREV：BLPC-110 High-Efficiency Agility Open-Type Double-Point Power Press NEXT：BLPC-200 Extra-Wide Bed High-Rigidity Open-Type Double-Point Power Press
  • Description
  • Contact Us
Basic data BLPC-110 BLPC-160 BLPC-200 BLPC-250 BLPC-315
Model V H V H V H V H V H
Nominal Capacity (kN) 1100 1600 2000 2500 3150
Nominal Pressure Stroke (mm) 5 3 6 3 6 3 7 3.5 7 3.5
Strokes of Slide (mm) 180 110 200 130 250 150 280 170 300 170
Strokes per Minute (S.P.M) 35-65 50-100 30-55 40-85 25-45 35-70 20-35 30-60 20-35 30-50
Max. Die Height (mm) 400 435 450 485 500 550 550 605 550 615
Die Height Adjustment (mm) 100 100 120 120 120
Throat depth (mm) 330 385 425 455 505
Worktable Size (mm) 1800x650x130 2000x760x150 2400x840x170 2700x900x170 2800x1000x190
Slide Bottom Size (mm) 1400x500x70 1600x550x70 1850x650x95 2300x700x95 2300x900x95
Height of working face (mm) 830 990 1070 1100 1190
Distance between Column (mm) 1510 1630 1980 2239 2340
Main motor (kW*P) (vs) 11*4 (vs) 15*4 (vs) 18.5*4 (vs) 22*4 (vs) 30*4
Die height adjuster (kW) 1.1 1.1 1.5 1.5 1.5
Air Pressure (MPa) 0.55 0.55 0.55 0.55 0.55
Punch accuracy \ Level 1GB(JIS)1 class
Overall Dimension (mm) 1745x2000x3059 1940x2200x3709 2235x2620x3849 2545x3000x4304 2800x3070x4835
Press weight (Ton) 14 21 28 44 49
Mold pad capacity (kN) 36x2 63x2 100x2 140x2 140x2
Ram stroke (mm) 70 70 80 100 100
Effective Area of Cushion (mm²) 350x235x2Group 410x260x2Group 540x350x2Group 640x470x2Group 640x470x2Group
