BLPD-160 Versatile Balanced-Stability Semi-Closed Single-Point Power Press

BLPD-160 Versatile Balanced-Stability Semi-Closed Single-Point Power Press delivers a nominal capacity of 1600 kN with a 16.8-ton high-rigidity frame, designed for stable drawing and forming operations. It features a 200 mm slide stroke and a 980 × 800 mm worktable, providing sufficient clearance for a wide range of tooling applications. An electric slide adjustment system and a digital die height indicator enable fast and accurate mold setup. Driven by a 15 kW high-torque motor, it maintains stable precision under heavy-load conditions, ensuring reliable performance in continuous production.

Contact Us Contact Us

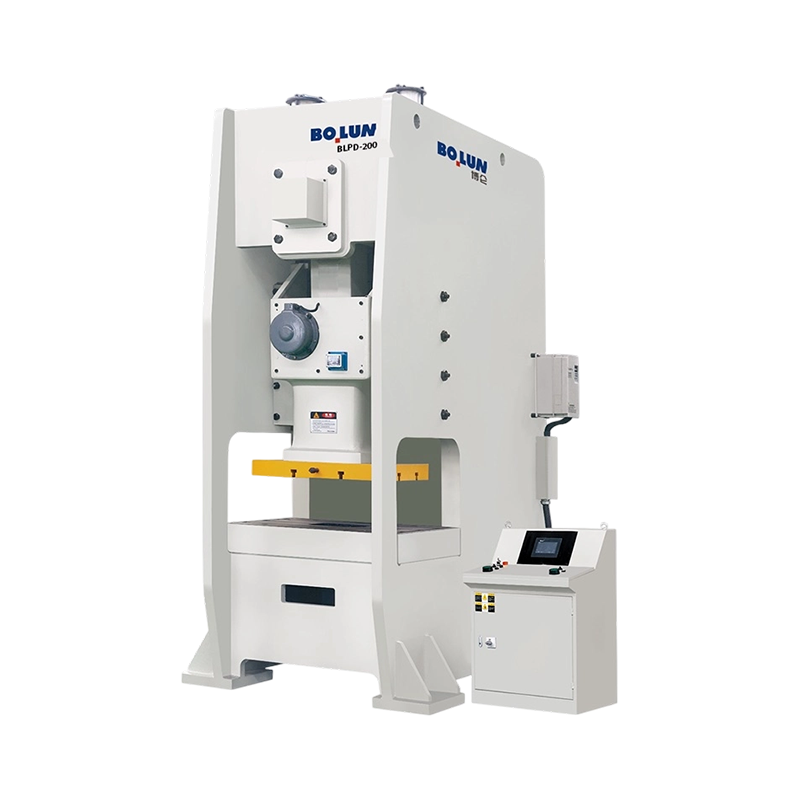

PREV：BLPD-110 Agile Precision Semi-Closed Single-Point Power Press NEXT：BLPD-200 Heavy-Duty Large-Format Semi-Closed Single-Point Power Press
  • Description
  • Contact Us
Model BLPD-80 BLPD-110 BLPD-160 BLPD-200 BLPD-260 BLPD-315 BLPD-400 BLPD-500 BLPD-630
V H V H V H V H V H V H V V V
Nominal Capacity (kN) 800 800 1100 1100 1600 1600 2000 2000 2600 2600 3150 3150 4000 5000 6300
Nominal Pressure Stroke (mm) 4 2 6 3 6 3 6 3 7 3 7 3.5 7 7 8
Strokes of Slide (mm) 150 70 180 80 200 90 200 100 250 150 250 150 220 220 220
Strokes per Minute (S.P.M) 35-80 80-120 30-60 60-90 20-50 40-70 20-50 50-70 20-40 40-60 20-35 35-50 20-35 20-35 15-30
Max.Die Height (mm) 340 380 360 410 460 510 460 510 500 550 550 600 550 550 550
Die Height Adjustment (mm) 80 80 80 80 100 100 110 110 120 120 120 120 150 150 150
Worktable Size (mm) 760x550x90 760x550x90 900x600x110 900x600x110 980x800x140 980x800x140 1140x820x160 1140x820x160 1140x840x180 1140x840x180 1500x860x190 1500x860x190 1600x880x220 1750x900x250 1750x900x250
Slide Bottom Size (mm) 700x420x70 700x420x70 800x470x80 800x470x80 850x550x90 850x550x90 1030x630x90 1030x630x90 1130x650x100 1130x650x100 1130x650x100 1130x650x100 1300x700 1300x800 1300x800
Height of working face (mm) 810 810 830 830 900 900 1005 1005 1020 1020 1030 1030 1240 1250 1250
Distance between Column (mm) 788 788 880 880 930 930 1140 1140 1230 1230 1230 1230 1220 1300 1350
Main motor (kW*P) (vs) 7.5*4 (vs) 7.5*4 (vs) 11*4 (vs) 11*4 (vs) 15*4 (vs) 15*4 (vs) 18.5*4 (vs) 18.5*4 (vs) 22*4 (vs) 22*4 (vs) 30*4 (vs) 30*4 (vs) 37*4 (vs) 45*4 (vs) 55*4
Die height adjuster (kW) 0.4 0.4 0.4 0.4 1.1 1.1 1.1 1.1 1.5 1.5 1.5 1.5 2.2 3.7 3.7
Air Pressure (MPa) 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55 0.55
Punch accuracy \ GB(JIS)1class
Overall Dimension (mm) 1300x1890x3000 1300x1890x3000 1420X1985X3200 1420X1985X3200 1600x2200x3500 1600x2200x3500 1750x2500x3900 1750x2500x3900 2180x2850x4470 2180x2850x4470 2200x2925x4550 2200x2925x4550 1950x3350x4580 2010x3480x4620 2200x3550x5450
Press weight (Ton) 7.8 7.8 10.5 10.5 16.8 16.8 24.5 24.5 32 32 34 34 44 46 55
Mold pad capacity (kN) 36 36 63 63 100 100 140 140 140 140 140 140 140 140 140
Ram stroke (mm) 70 70 80 80 80 80 100 100 100 100 100 100 100 100 100
Effective Area of Cushion (mm²) 450x310 450x310 500x350 500x350 650x420 650x420 710x480 710x480 810x480 810x480 810x480 810x480 810x480 810x480 810x480
