BLES-200 Versatile Dynamic-Stroke Closed-Frame Double-Point Servo Power Press

BLES-200 Versatile Dynamic-Stroke Closed-Frame Double-Point Servo Power Press delivers a nominal capacity of 2000 kN with a 250 mm slide stroke, designed for precision forming of complex and difficult-to-process materials. The closed-frame double-point structure ensures stable load distribution and high structural rigidity during operation. It features a 2200 × 940 mm worktable and a 900 × 600 mm side opening, providing sufficient clearance for large dies and flexible tooling arrangements. The servo control system enables programmable slide speed and dwell positions, improving process adaptability for forming optimization. With a continuous working energy of 14,000 J, it supports stable performance in demanding stamping applications.

Contact Us Contact Us

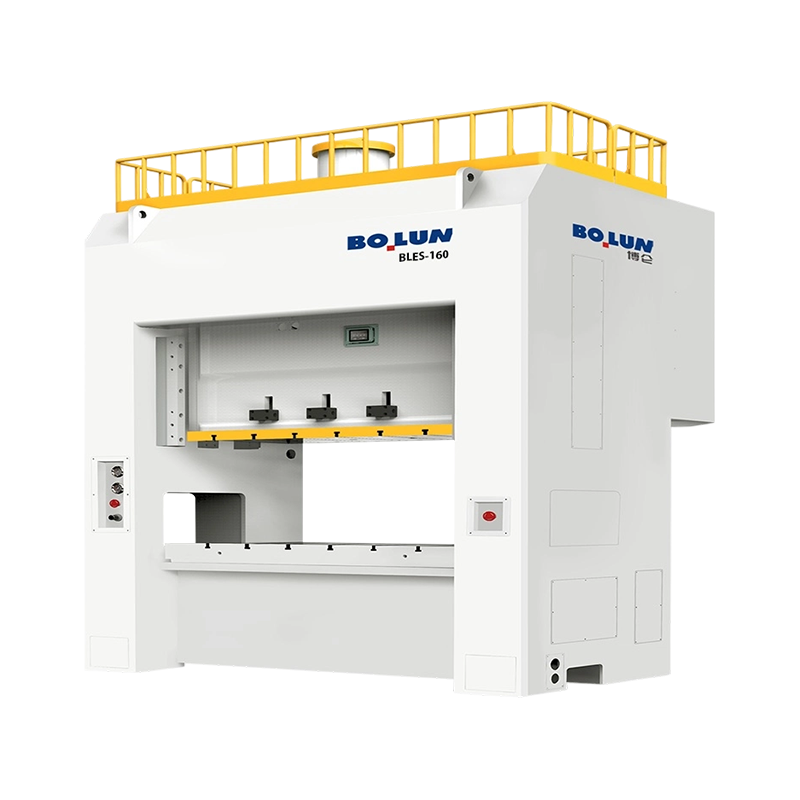

PREV：BLES-160 Agile Precision Closed-Frame Double-Point Servo Power Press NEXT：BLES-250 High-Energy Stable-Bed Closed-Frame Double-Point Servo Power Press
  • Description
  • Contact Us
Model BLES-160 BLES-200 BLES-250 BLES-315 BLES-400 BLES-500 BLES-630 BLES-800
V H V H V H V H V H V H V H V H
Nominal Capacity (kN) 1600 2000 2500 3000 4000 5000 6300 8000
Nominal Pressure Stroke (mm) 6 6 7 7 7 7 7 7
Continuous working energy (J) 9000 14000 25200 30000 35000 43000 48000 80000
Strokes of Slide (mm) 180 250 280 300 300 300 400 400
Strokes per Minute (S.P.M) ~55 ~50 ~40 ~35 ~35 ~35 ~30 ~25
Max.Die Height (mm) 450 500 550 550 600 650 650 750
Die Height Adjustment (mm) 100 120 120 120 150 150 150 250
Side opening (mm) 700x450 900x600 900x600 900x600 900x600 1000x600 1000x600 1100x800
Worktable Size (mm) 1800x760 2200x940 2500x1000 2500x1000 2800x1000 Small countertop
3200x1100 Large platform		 3200x1200 3400x1300 3800x1600
Slide Bottom Size (mm) 1600x650 1850x750 2200x900 2200x900 2600x900Small countertop
3000x1000 Large platform		 3000x1100 3200x1200 3800x1600
Punch accuracy \ JIS B 6402 Level 1
Air Pressure (MPa) 0.55
Press Structure \ One-piece One-piece/three-part Three-part
